DSY60A electric test pump

Category Other Pipe Machine

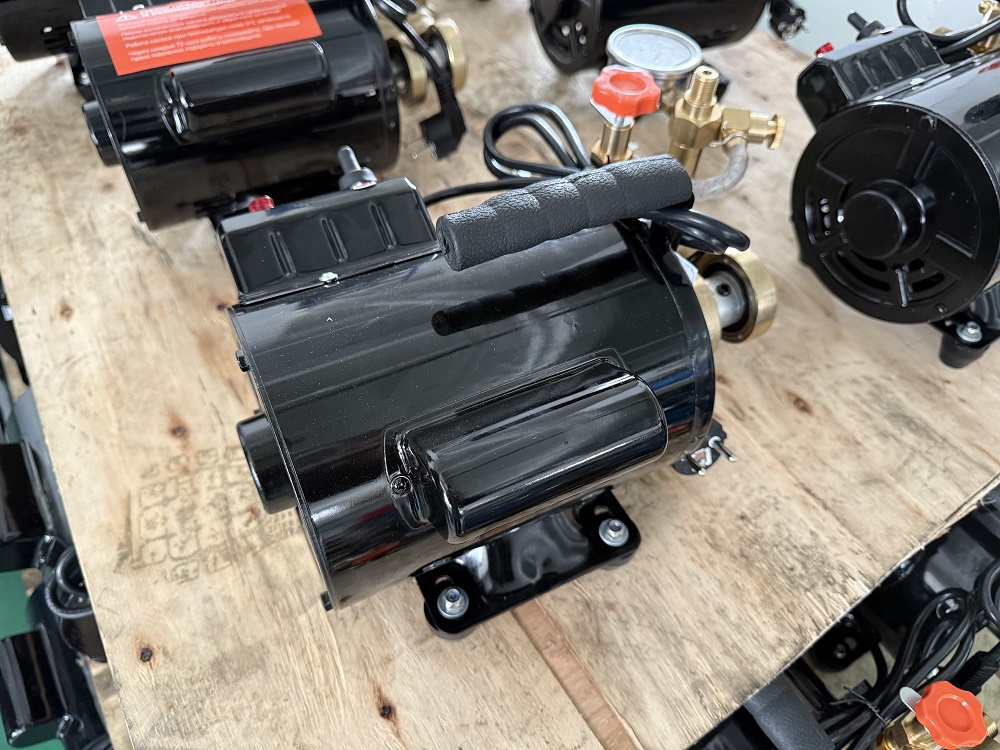

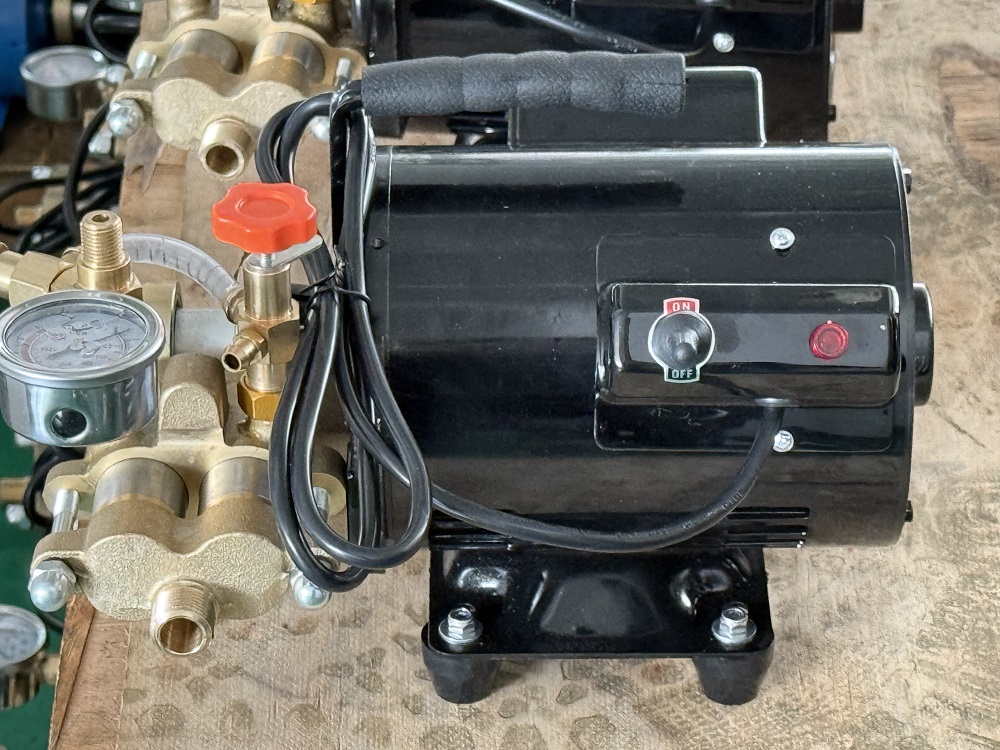

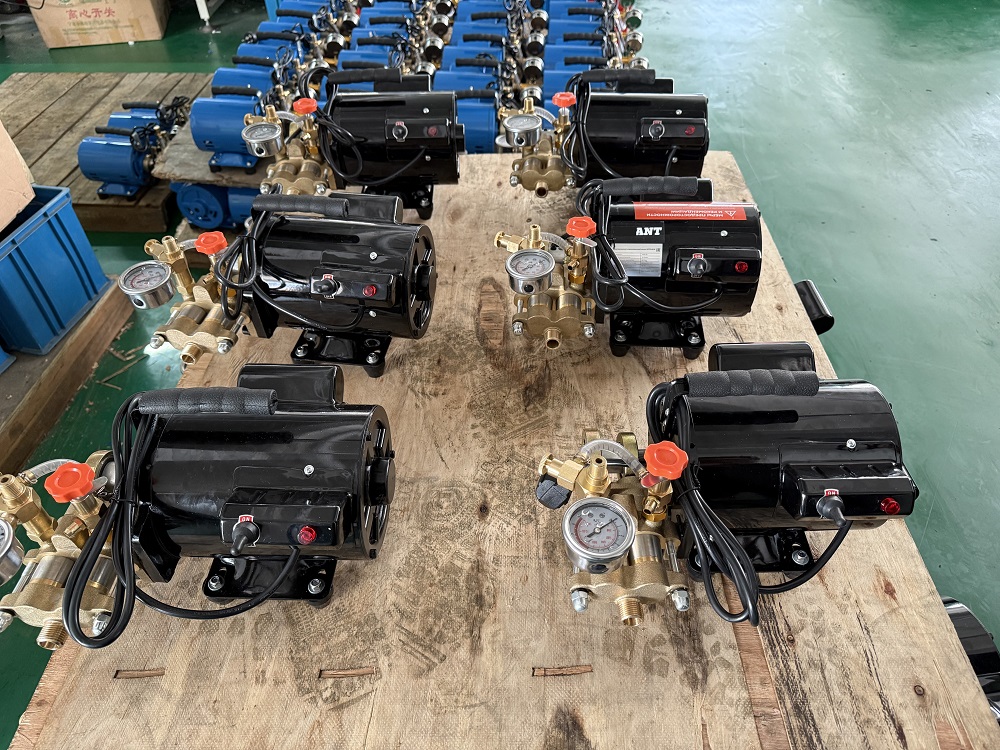

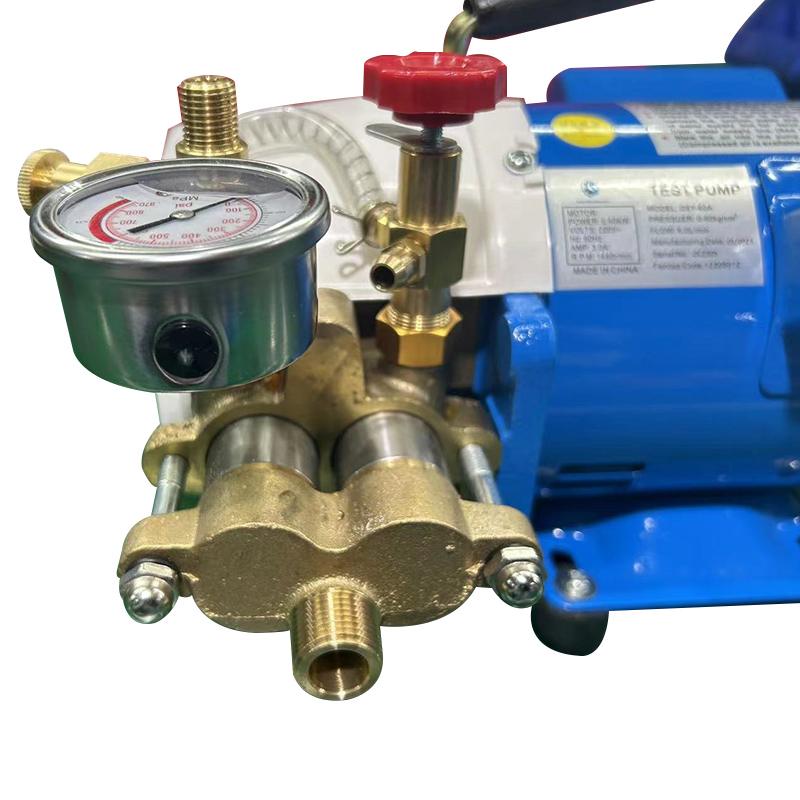

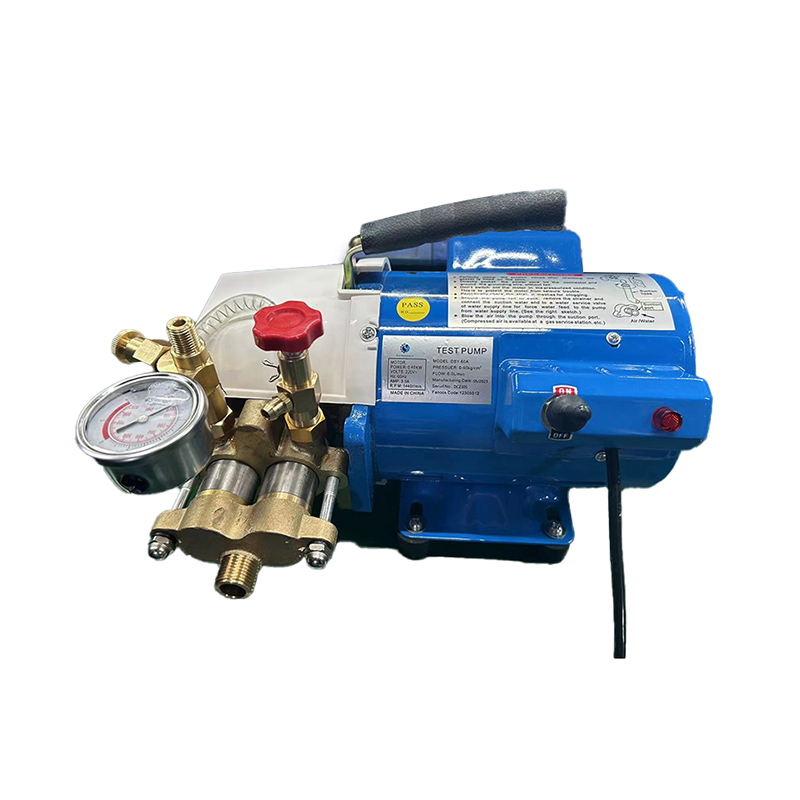

DSY60A electric test pump

DSY60A electric test pump is powered pressure testing pump for check the pressure of various pipeline in chemical industry, building, water, oil, coal, metallurgy, ship-building and other industries. It is in compact reasonable structure, easy to operate, light weight for carry. Convenient maintenance, driven by motor, greatly improving work efficiency.

DSY60A electric test pump

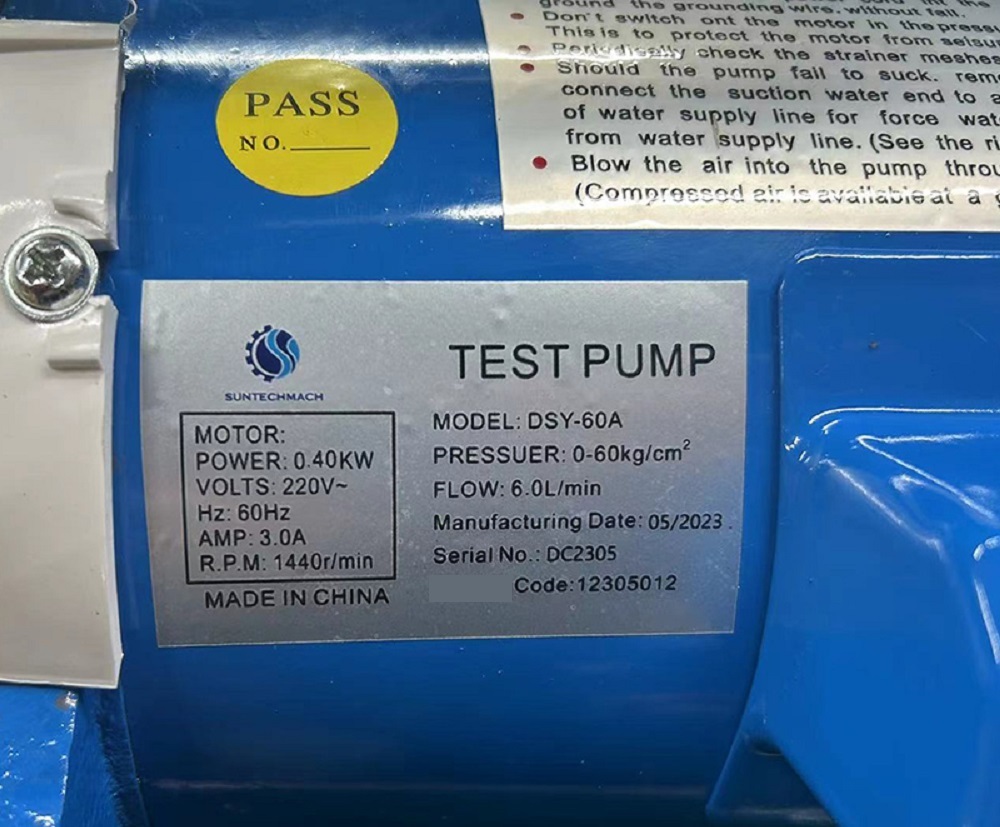

Model: DSY60A
Testing range: 0-6.0Mpa, 60kg/cm2, 900Psi
Water flow: 480L/h
Motor:　400W induction type

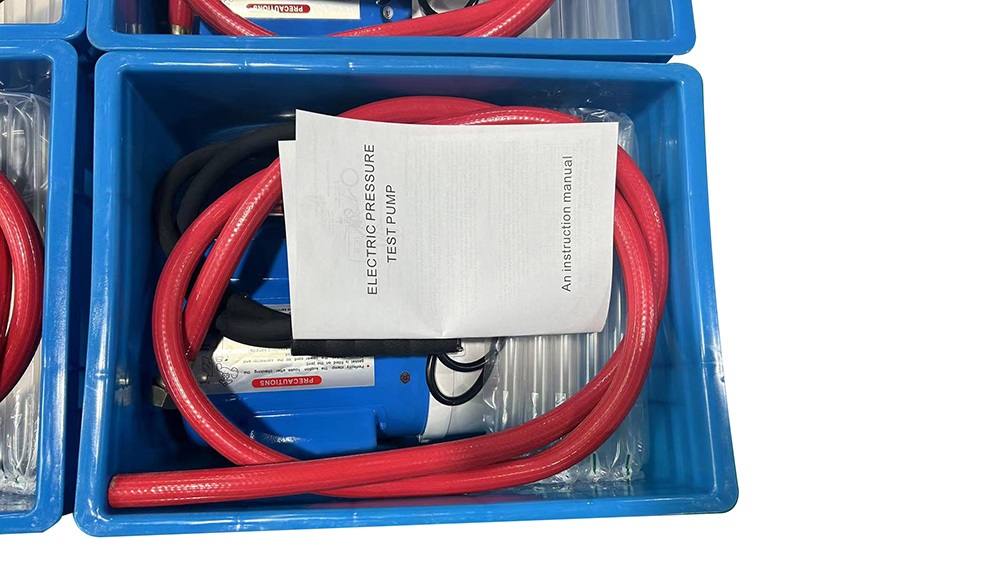

Packaging: each set in a plastic box
Plastic box size: 40x30x29cm
Weight: 17/15kgs

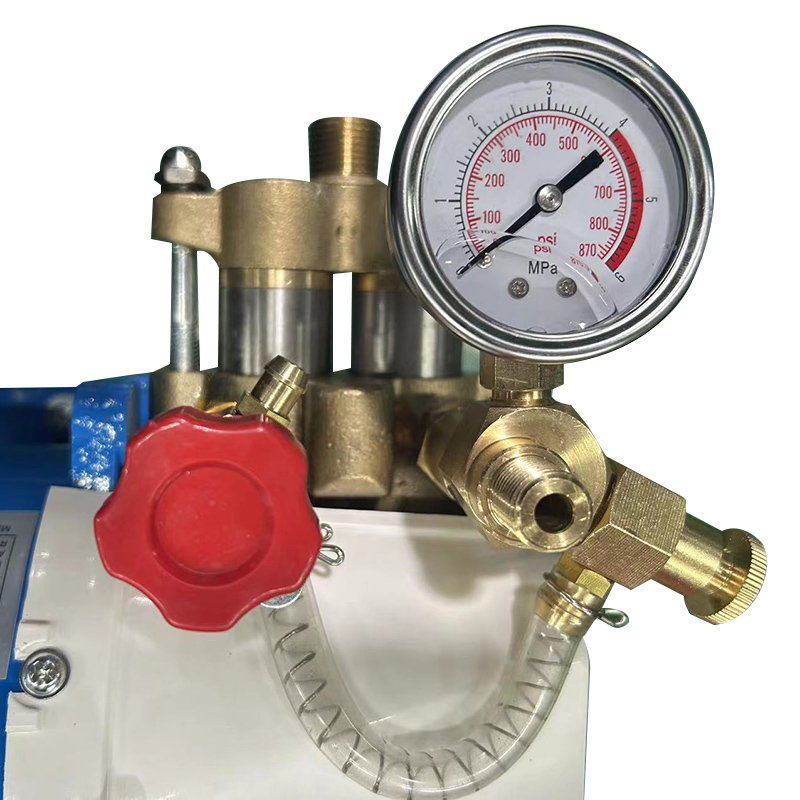

Accessories: pressure hose, pressure gauge, seal set

OPERATION OF DSY60A ELECTRIC TEST PUMP

Preparations

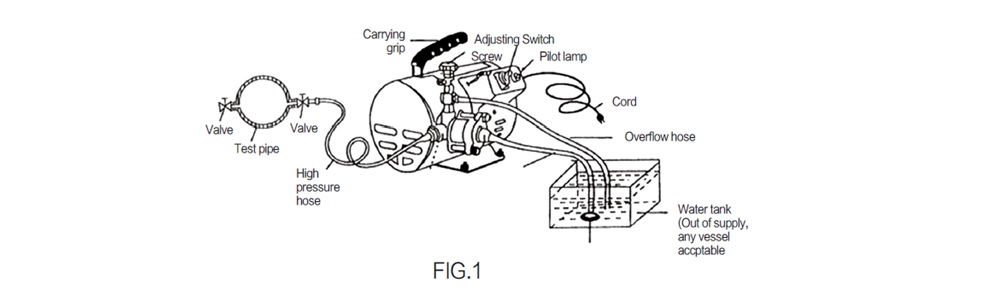

1) Connect the suction hose and the overflow hose, in the meantime also connect the high pressure hose and the universal nozzle, as illustated in Fig.1 chart. Make sure the suction hose, the high pressure hose and the nozzle must be fastened tightly together with gasket to avoid the water leakage from all joint.

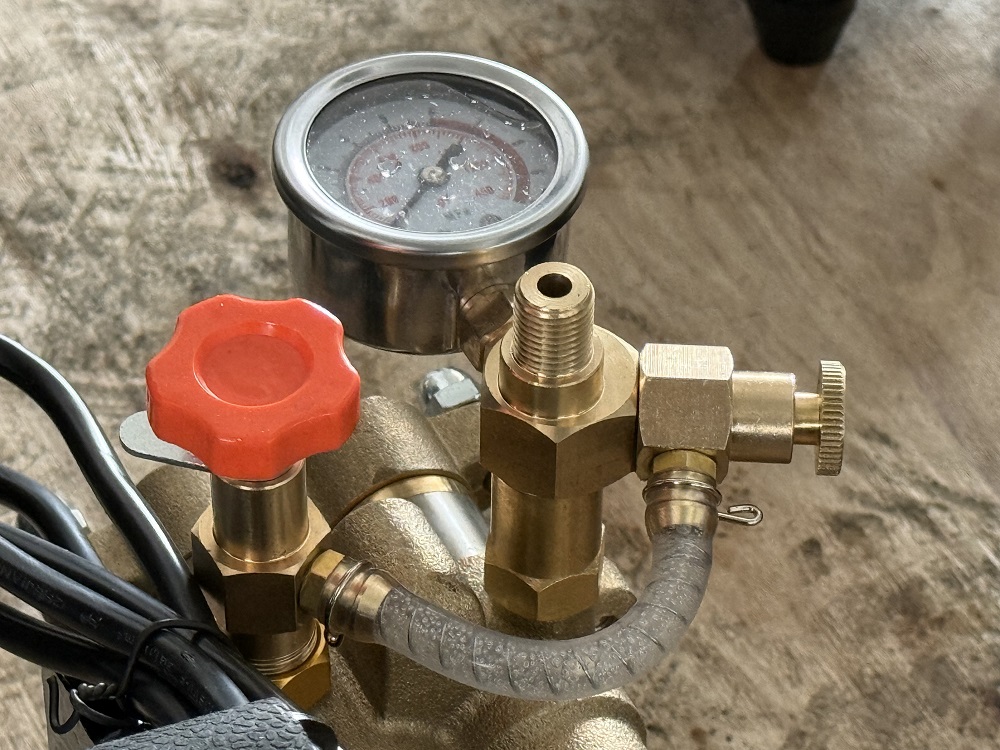

2) Loose the pressure adjusting screw. This is to prevent immediate pressure rising after turning on the pump.
3) Put both the suction hose with strainer and the overflow hose in a same water tank (any vessel acceptable, see Fig.1)
4) Keep the water tank clean.
5)Connect the power cord. (Pilot lamp lights indcate”current ready”)

Operation
1) Double check and make sure that the adjusting screw on the electric test pump mentioned above is loosened, then turn on the switch to start pressure testing.
2) Make sure that water flows back to the water tank through the overflow hose.

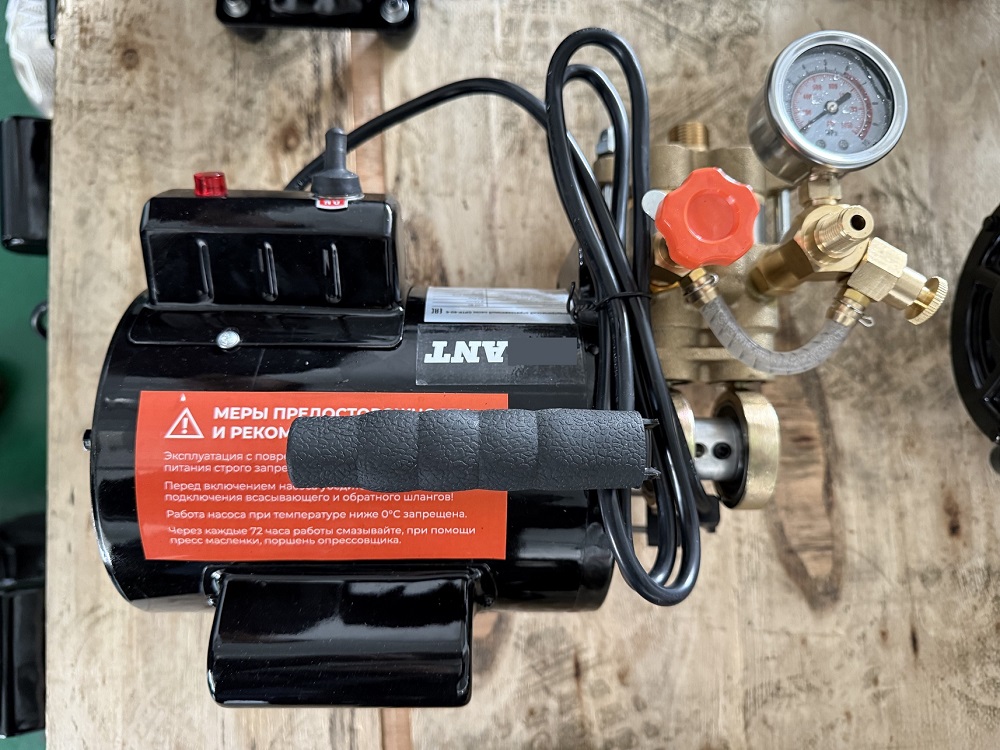

3) In case that no water flows back to the water tank, follow the instructions of the caution sticker on the motor to solve it.
4) Avoid idle running of the pump. (Do not operate the pump, when no water flows back through the overflow hose)

VIDEO OF DSY60A ELECTRIC TEST PUMP

F.A.Q.

1. Who are we?

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?

We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.

3. What can you buy from us?

All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.

4. Why should you buy from us not from other suppliers?

We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. How long is the leadtime?

Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.

6. How can you place order?

We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.

7. How to ship?

We ship by sea to port for bulk order and we also ship to door for small shipment.

8. What is the MOQ?

Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.

9. Is OEM acceptable?

Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
