Roll Grooving Machine China
INTRODUCTION OF ROLL GROOVING MACHINE CHINA
Roll Grooving Machine China
Model: STG2A
Capacity: 2″-12″ (60-325mm) Sch40 Steel pipe,
Sch10s Sch5s Sch10 Sch5 thin wall steel pipe
Pipe wall-thickness: : Max.10mm
Speed: 23rpm
G.W.: 158KGS
Packing size: Plywood case 78x70x92cm
With 3pcs knurl wheel and 2pcs pinch roll free parts and pipe rest
1) This machine is designed for grooving 2″-12″ steel pipe
2) Powered by high-performance gear reducing motor contributing to compact size and low noise
3) The unique integral hydraulic pump structure and groove depth limitation device ensure high quality grooves and high working efficiency

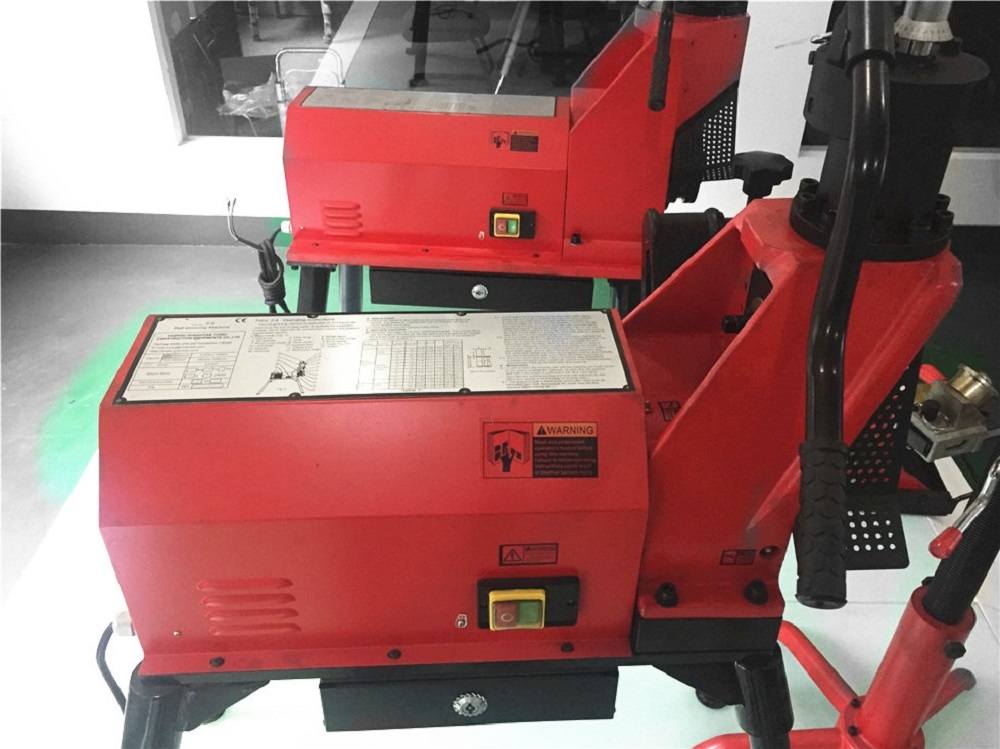

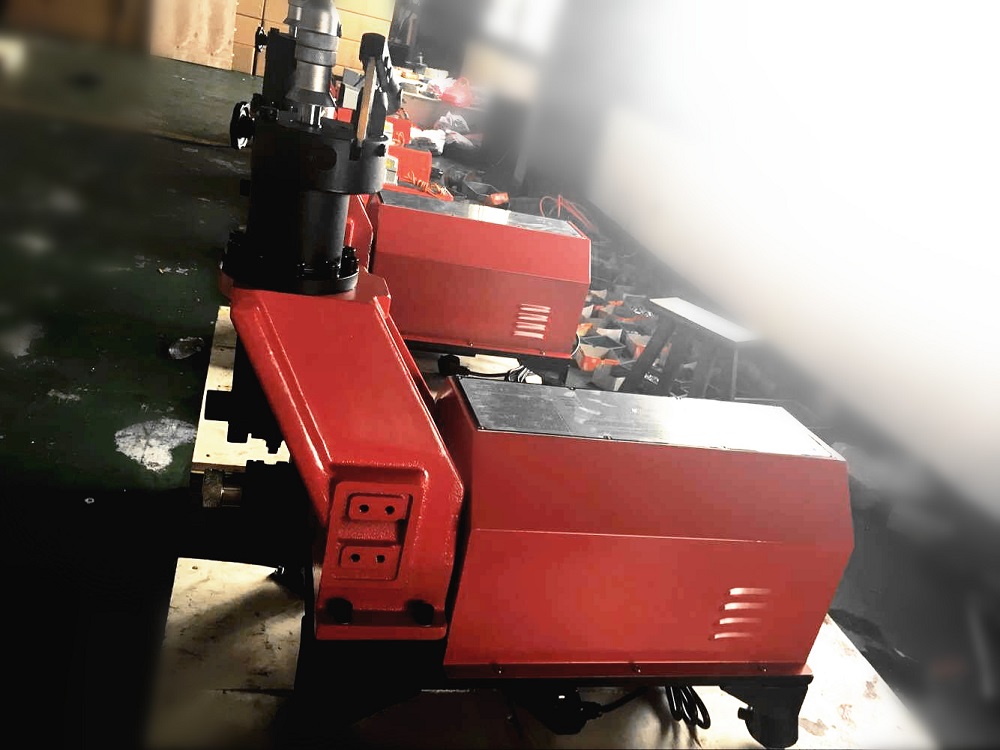

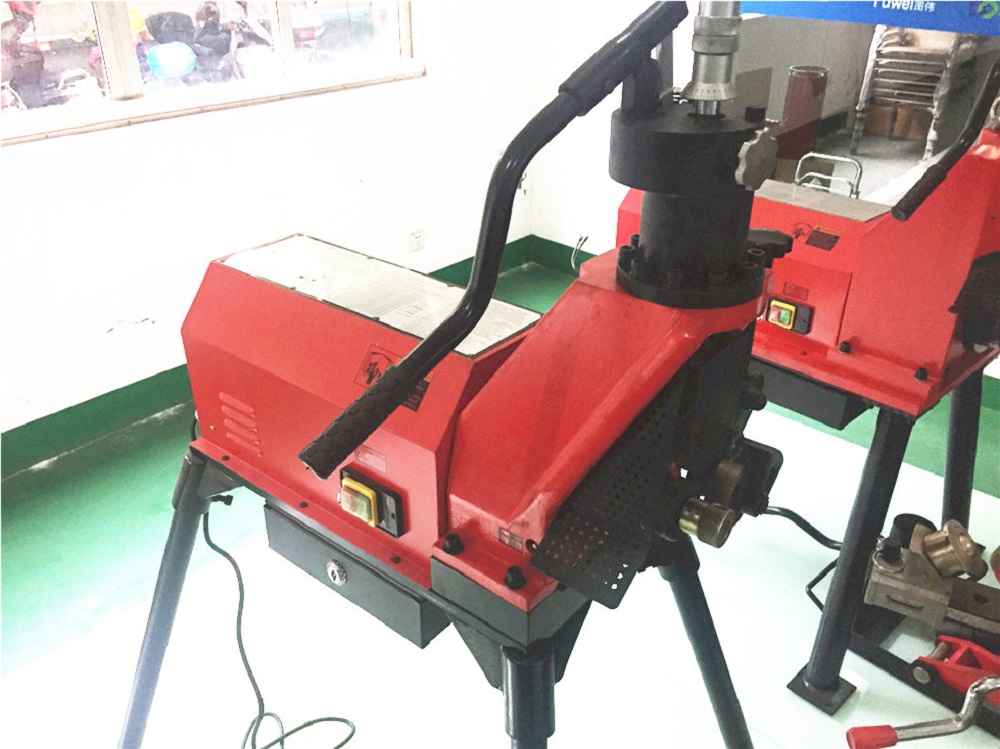

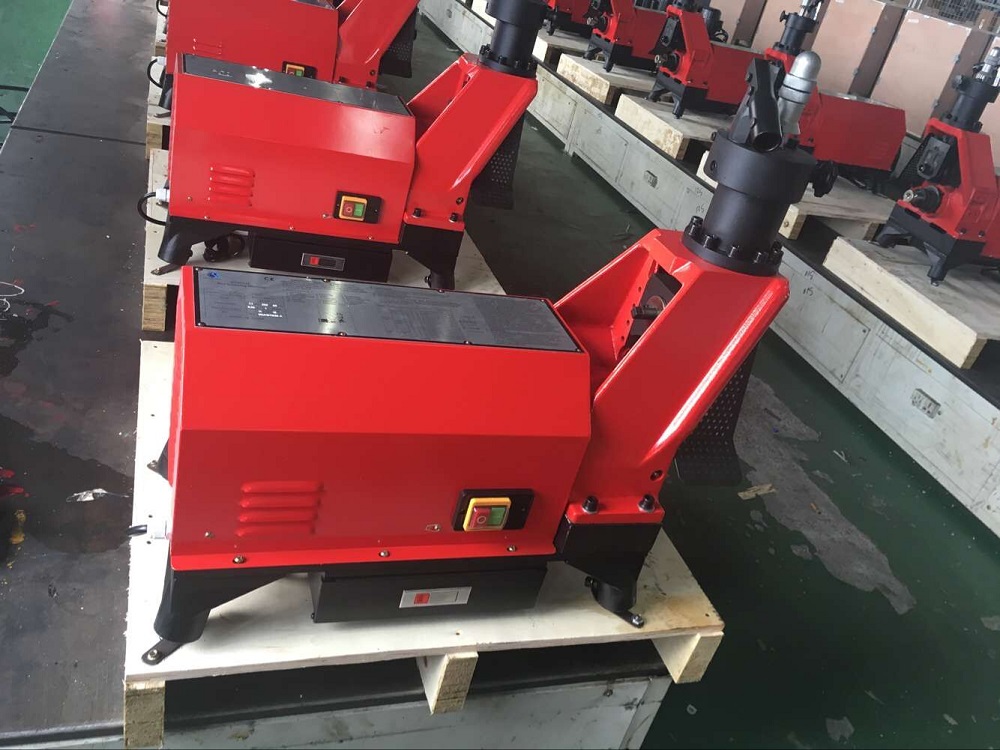

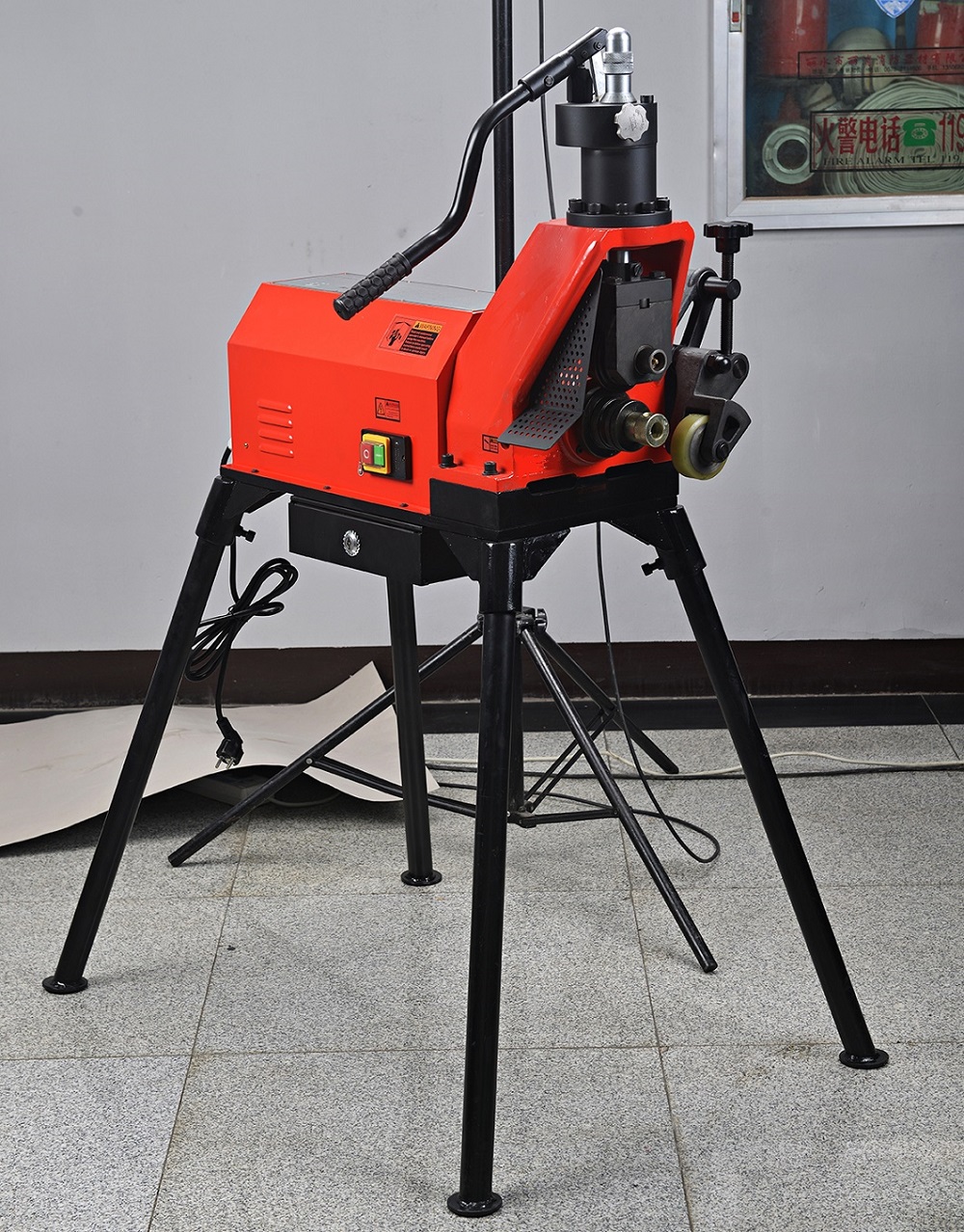

PICTURES OF ROLL GROOVING MACHINE CHINA
VIDEO OF ROLL GROOVING MACHINE CHINA

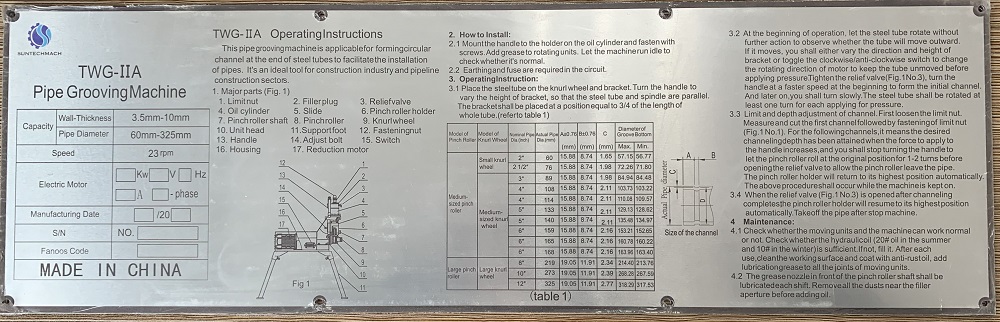

OPERATION OF ROLL GROOVING MACHINE CHINA

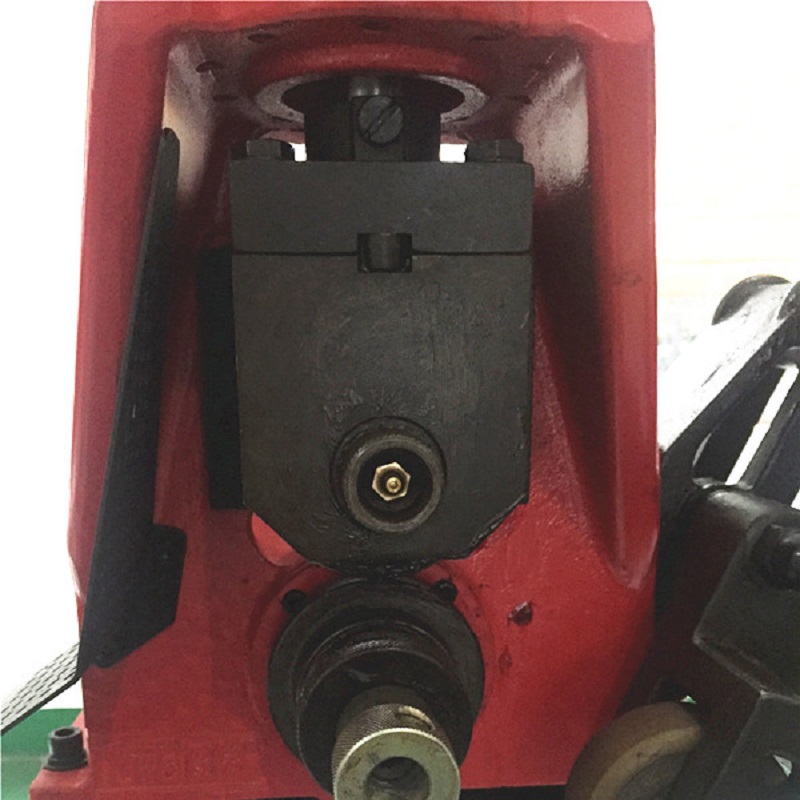

Choose corresponding upper roller and lower roller and install them on the roll grooving machine.

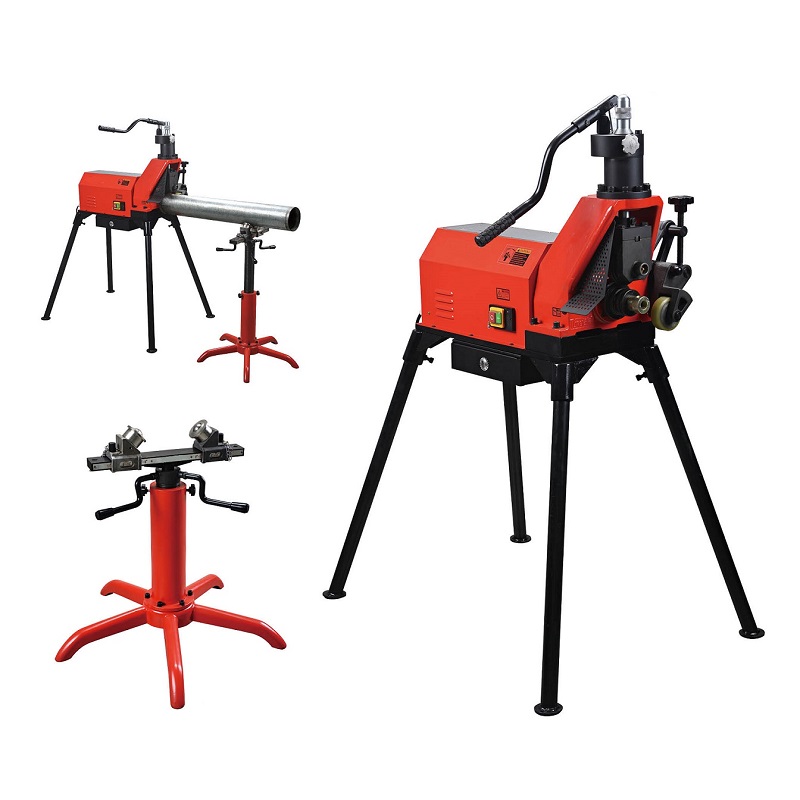

Put the pipe on the lower roller and pipe stands. The pipe stands should be placed at the position of 3/4 length of pipe. Then adjust the pipe stands height to make sure the pipe are 1 degree lower than the horizantal level.

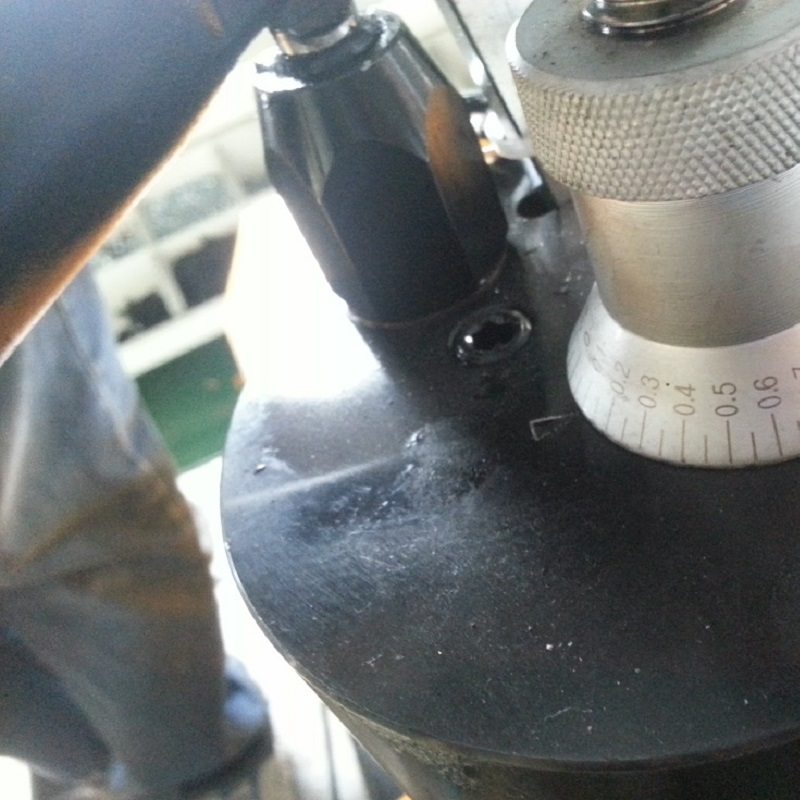

Tighten the relief valve, shake the hydraulic pump handle, let the upper roller going downward until it touch the surface of pipe end. Rotate the limit nut down, make it contact with the oil pump top frame. Check the correct data of groove depth for different diameter pipes in the chart. For instance, if we roll groove on a 3 inch pipe, the depth will be 1.98mm. Calculate from the red start line, rotate the limit nut 1.98mm up, then turn the fastening nut down until it touch the limit nut and fix it. (One circle rotation on the limit nut is equal to 2.5mm) Rotate the side guide wheel to support the pipe. Release the relief valve.

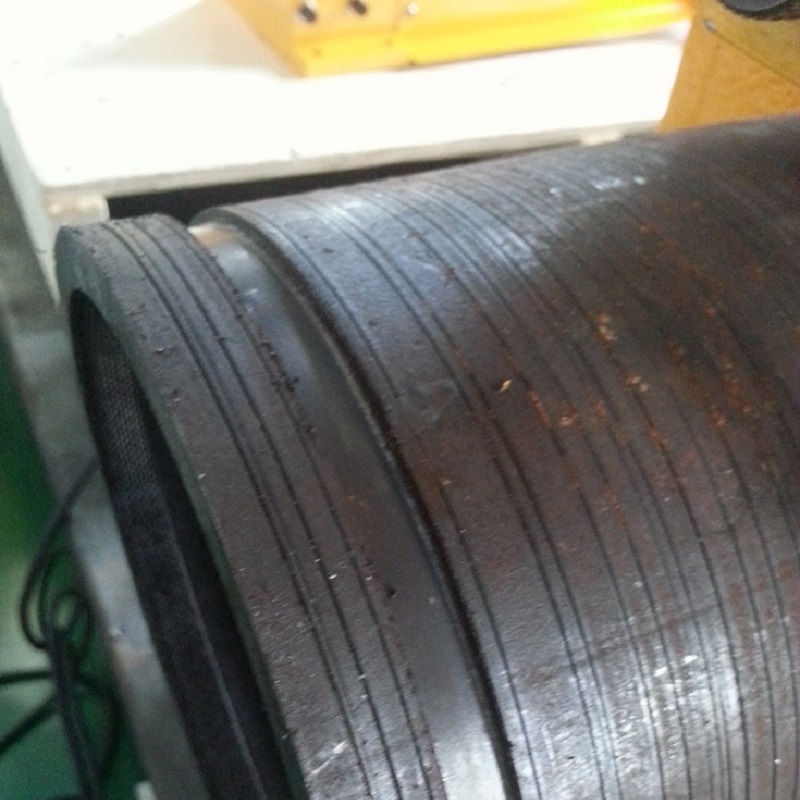

Connect the power plug, turn on the switch to run the machine. Tighten the relief valve again and pump the handle to start grooving. Continue to swing the handle until the limit nut reach the oil pump top (Please do not swing too fast). Allow the pipe to rotate additional one or two turns to make sure the groove is completed. At last turn off the switch and release the relief valve knob. Rotate the guide wheel to make it away from the pipe. Remove the pipe and check the groove depth with a pipe groove measuring tape.
F.A.Q.

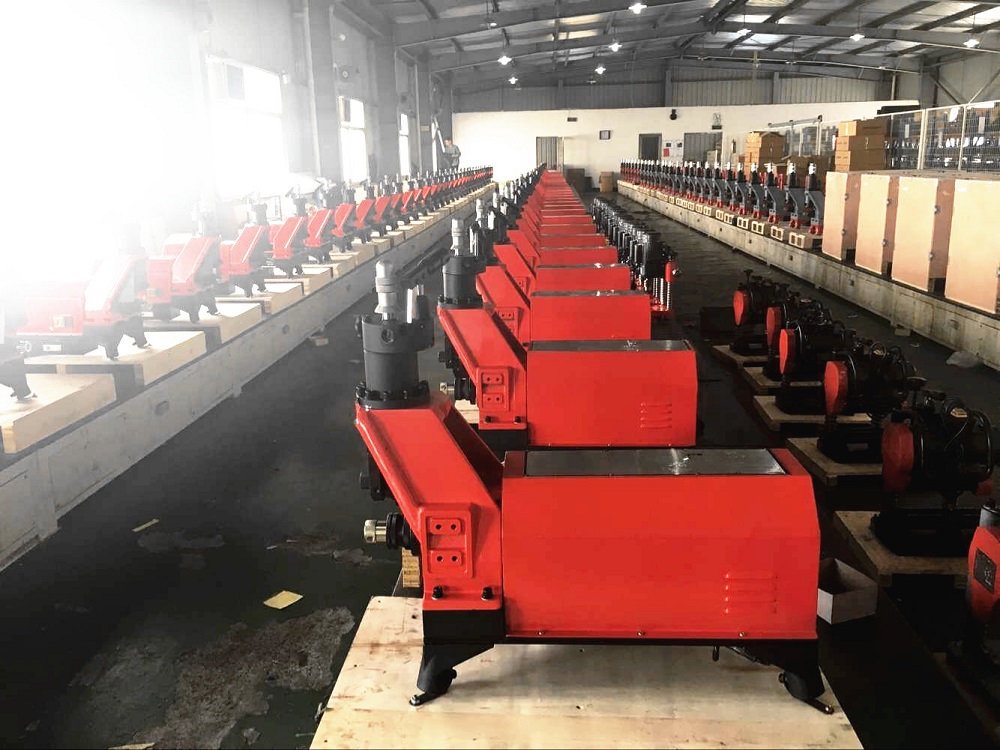

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.
We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.
All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.
We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.
We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.
We ship by sea to port for bulk order and we also ship to door for small shipment.
Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.
Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
