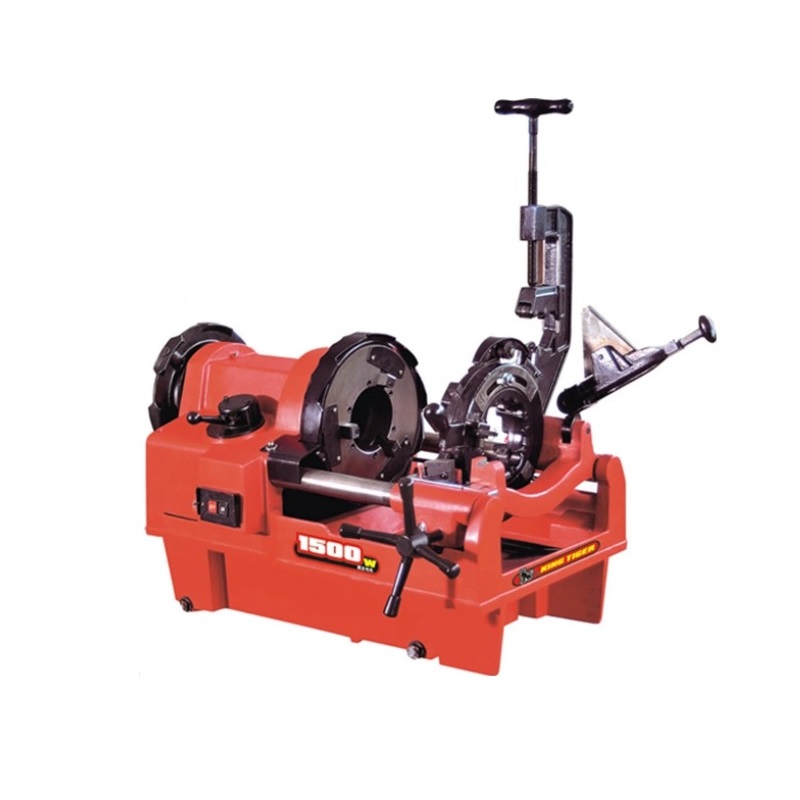

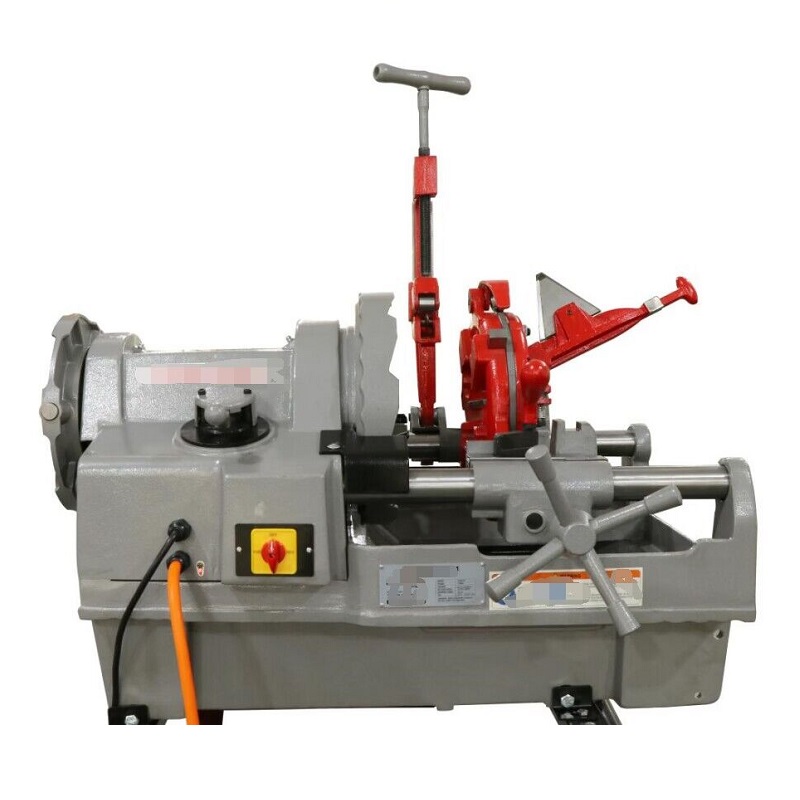

1224 Die head interchangeable 1500w 1/2"-4" electric pipe threader

1224 Die head interchangeable 1500w 1/2″-4″ electric pipe threader

Category pipe threader dies compatible with RIDGID REX ASADA

Reliable and proven for constant professional use for up to 4″ steel pipe threading.
An induction motor ensures sound levels well when using.
A special capacitor-start / capacitor run motor allows the machine to thread where voltage drop is experienced.
¼”-2” universal Die Head; 2½”-4” receding die head allows cutting of tapered or straight NPT / NPSM or BSPT / BSPP threads.
Approved by CSA and CE standards.
Interchageable with Ridgid 1224 threading machine

1224 Die head interchangeable 1500w 1/2″-4″ electric pipe threader

INTRODUCTION OF MADE IN CHINA RIDGID DIES PIPE THREADER

1224 Die head interchangeable 1500w 1/2″-4″ electric pipe threader are able to work with RIDGID dies and die head, this

model is welcomed in North America for its durability and compatibility with RIDGID.Meanwhile,1500w induction motor ensure big power

for tube threading, cutting.

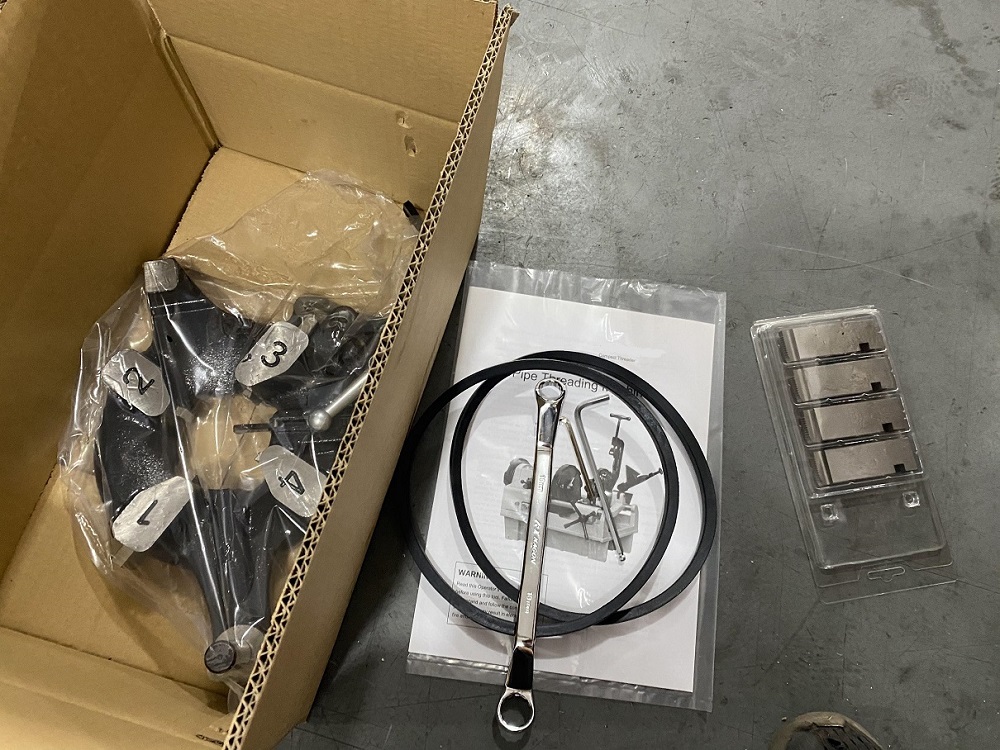

Standard Equipment:

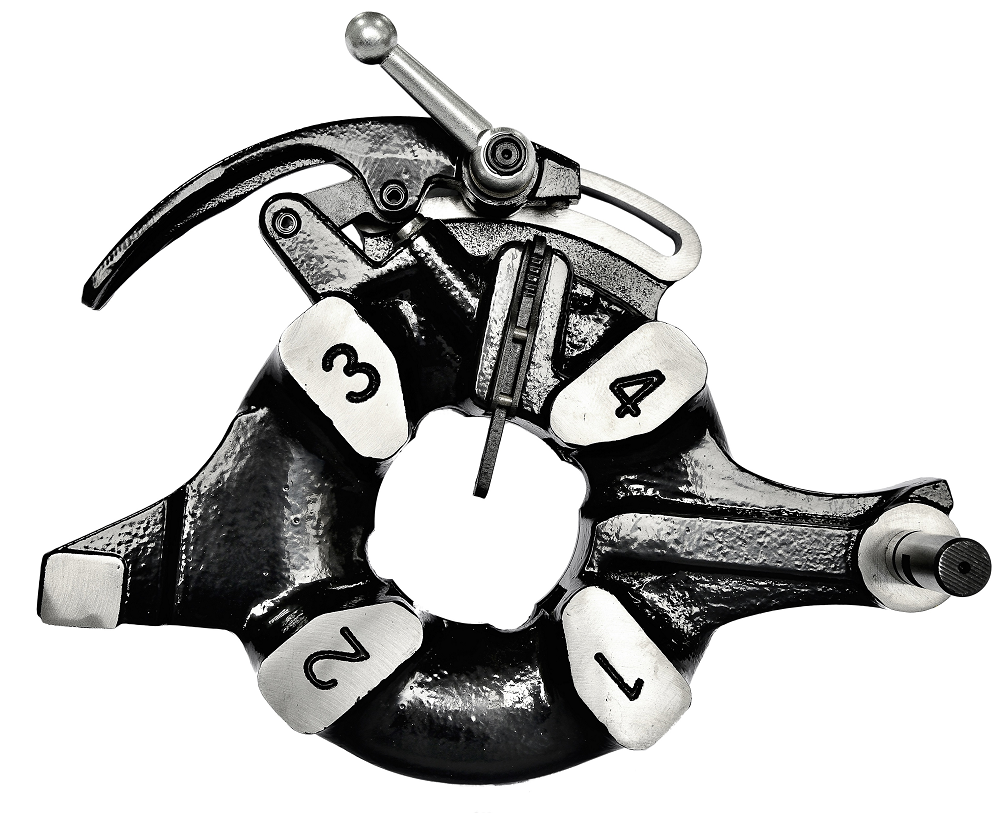

Die head (1/2″-2″): automatic type, interchangeable with the die head for RIDGID 711/911

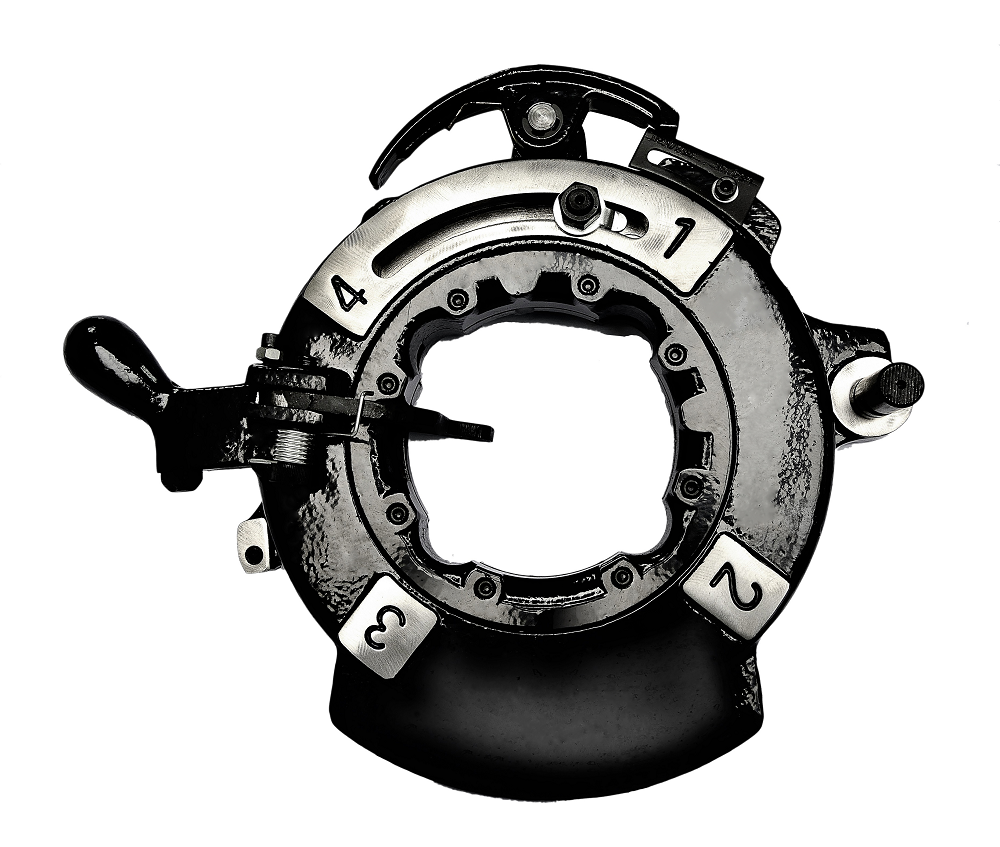

Die head (2 1/2″-4″): receding automatic type, interchangeable with the die head for RIDGID 714/914
1/2″-3/4″ universal HSS dies set.
1″-2″ universal HSS dies set.
2 1/2″-4”universal HSS dies set.
Cutter: Capacity: 1/4″-4”(6mm-100mm) pipe
Reamer: Positive-locking, right-hand 1/4″-4”(6mm-100mm).
Some spare parts of our machine is compatible with that of RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

TECHNICAL DATA OF MADE IN CHINA RIDGID DIES PIPE THREADER

Model:STT100F

Capacity: 1/2″-4″

Motor: 1500w induction type

Speed: 36 RPM for pipe threading 1/2″-3/4″

20 RPM for pipe threading 1″-2″

11 RPM for pipe threading 2 1/2″-4″

Die head (1/2″-2″): automatic type, interchangeable with the die head for RIDGID 711/911

Die head (2-1/2″-4″): receding automatic type, interchangeable with the die head for RIDGID 714/914

Remark：Standard with HSS dies, Ridgid 1224 type

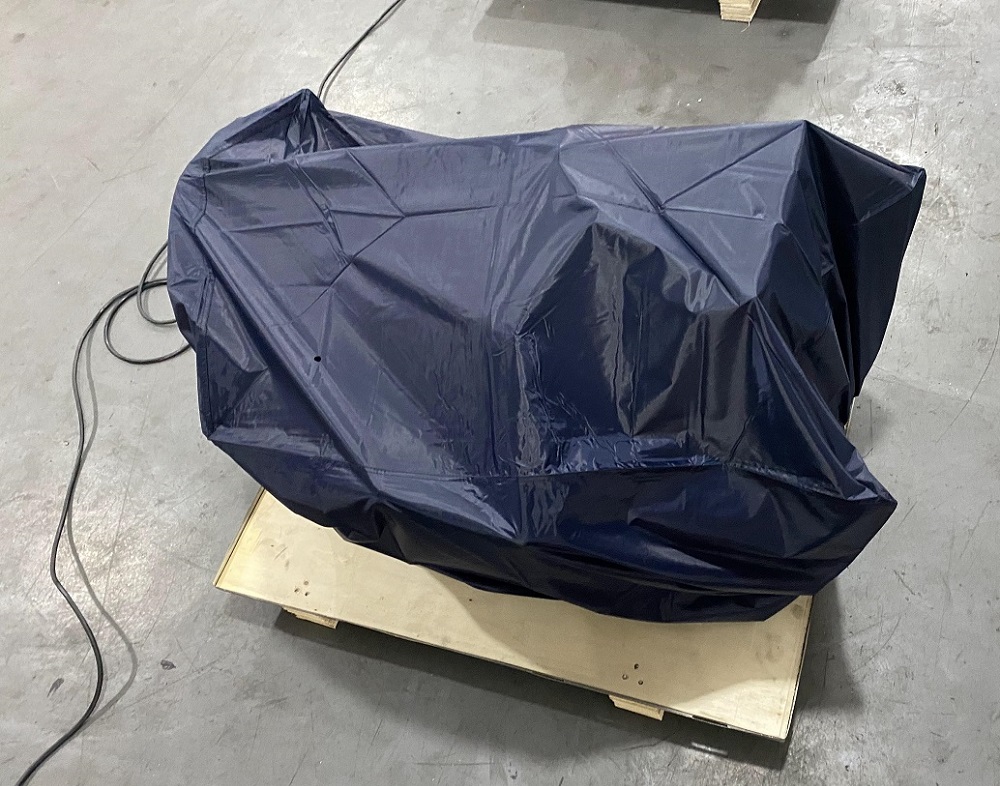

Package: 1 plywood case/set

G.W./N.W.: 175/150KGS

Packing size: 92x70x66cm

VIDEO OF MADE IN CHINA RIDGID DIES PIPE THREADER

OPERATION OF MADE IN CHINA RIDGID DIES PIPE THREADER

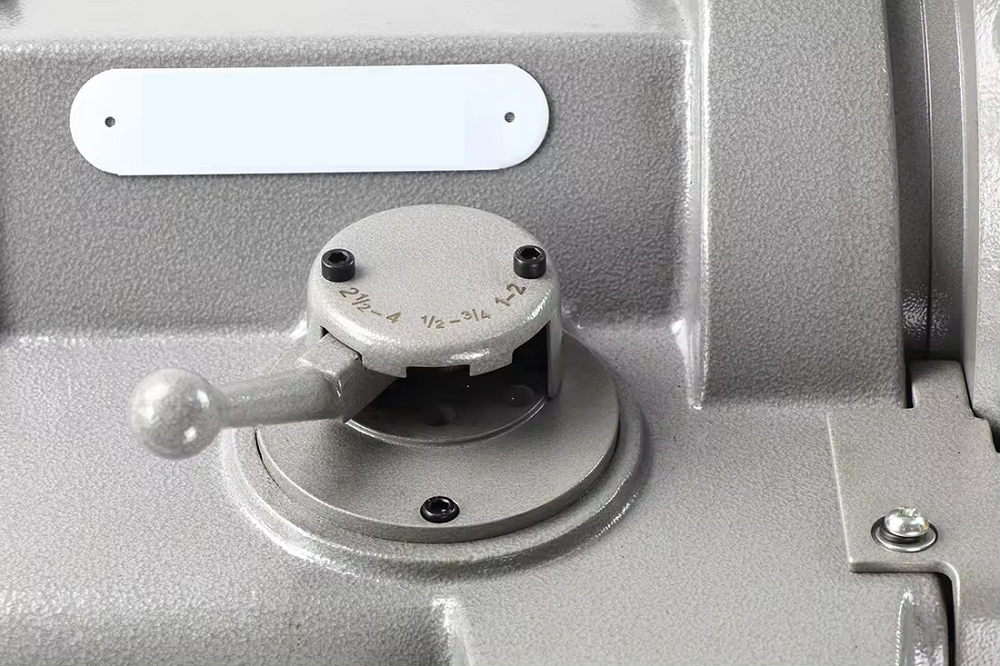

Adjust the die head to fit different diameter of pipe.
Check if the threading oil comes out.
Tighten the rear chuck and then the front chuck, make sure the pipe is in centerline.
Knock the hammer chuck several times to clamp the pipe tightly.
Use the reamer to make pipe reaming on the inner side of pipe end.

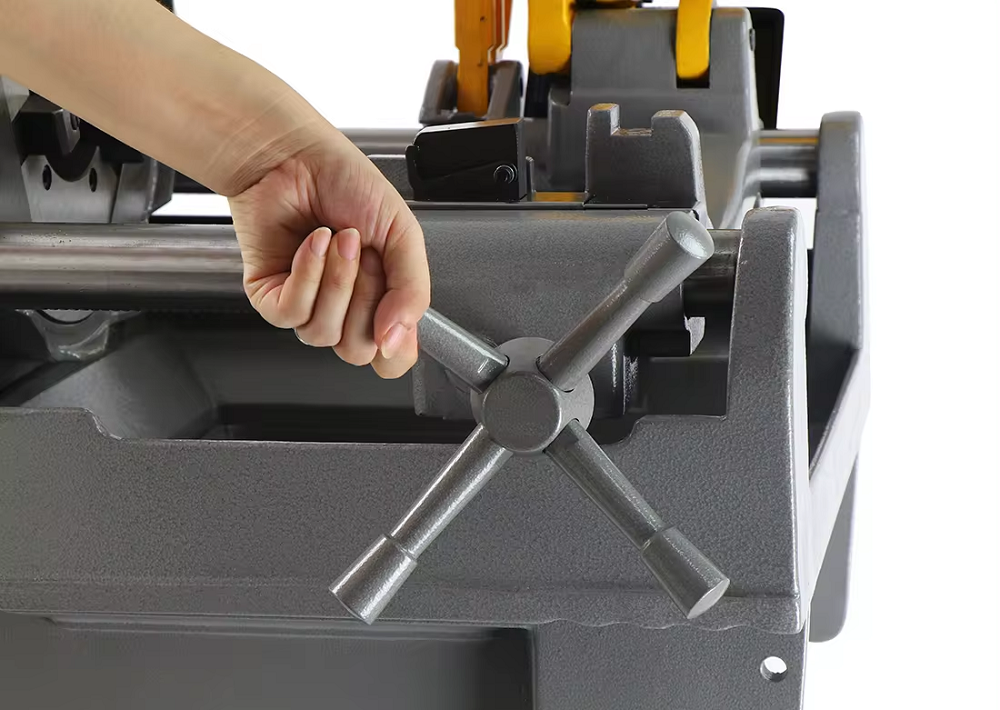

Swing the handle to let die head touch the pipe to make threading.
After the threading is done (the die head move a distance as what you have set for threads length), the die head will open automatically.
Cut down the pipe if you need.

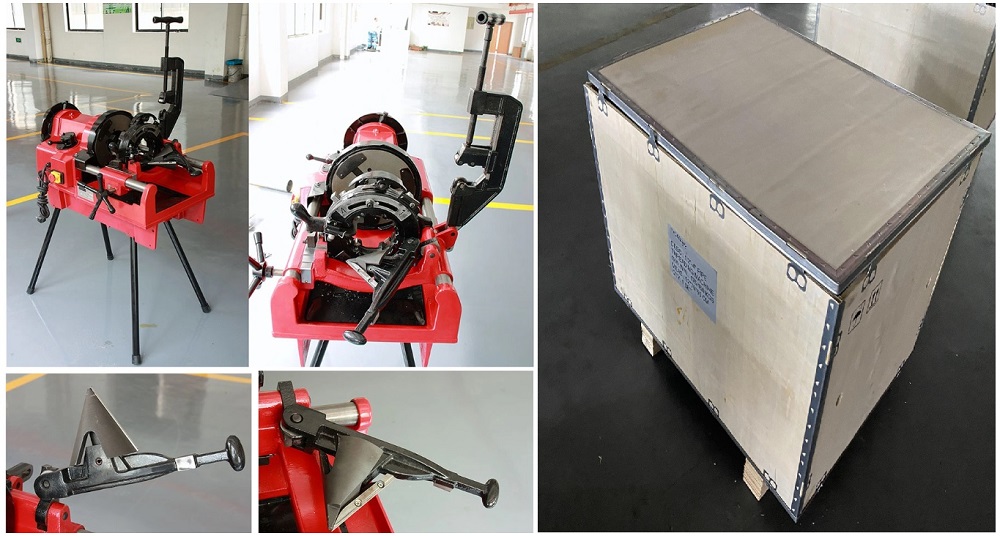

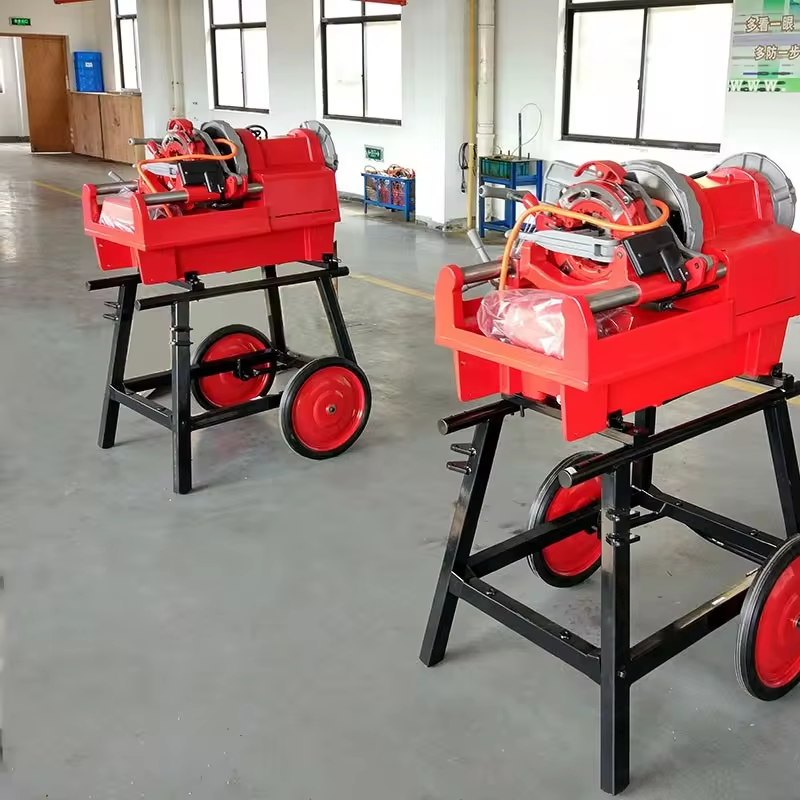

PICTURES OF MADE IN CHINA RIDGID DIES PIPE THREADER

We also have 1/2″-2″ electric pipe threader that are interchangeable with RIDGID 811a and 815a die head.

F.A.Q.

1. Who are we?

We are professional pipe machine manufacturer located in Hangzhou city of China starts from 1989, we are close to Port Shanghai, Ningbo as well as Yiwu. We mainly export to North and South America, South Asia and the Middle East countries. Our client are power tools wholesaler and comnpany for specific constrution project such as fire fighting pipeline building etc.

2. How can we guarantee the quality?

We always test at least one pipe on every pipe machine before we ship out.
Some of our heavy duty models works well after even 7 or 8 years according to our client feedback, for all of our machine we offer 12 month warranty.

3. What can you buy from us?

All kind of pipe tools and plumbing tools, such as pipe threading machine, pipe grooving machine, pipe cutting machine, pipe hole cutter, manual pipe bender, pipe vice as well as the test pump.

4. Why should you buy from us not from other suppliers?

We focus on quality piping tools, machinery and service. We have almost all kind of pipe tools, place order to us we can mix different models in one shipment. Language available:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. How long is the leadtime?

Since the voltage of machine motors are customized, usually the lead time will be 10-35 days after payment.

6. How can you place order?

We accept T/T payment directly to our company account and we can also create order on the online shop site that you can pay to us by credit card.

7. How to ship?

We ship by sea to port for bulk order and we also ship to door for small shipment.

8. What is the MOQ?

Basically there is no MOQ required for our machines, we can ship any quantity but it is highly recommened to make order amount not less than USD2000.00, because according to our experience if the order are too small amount the sea shipping adding tarrif makes it not cost-effective to buy oversea.

9. Is OEM acceptable?

Yes. For bulk order we can make nameplate and customized packaging in client’s brand.
